FOUTZ MOTOTORSPORTS - GEN 3 F150 RAPTOR MID TRAVEL KIT WITH BILLET ALUMINUM UPPER ARM KIT

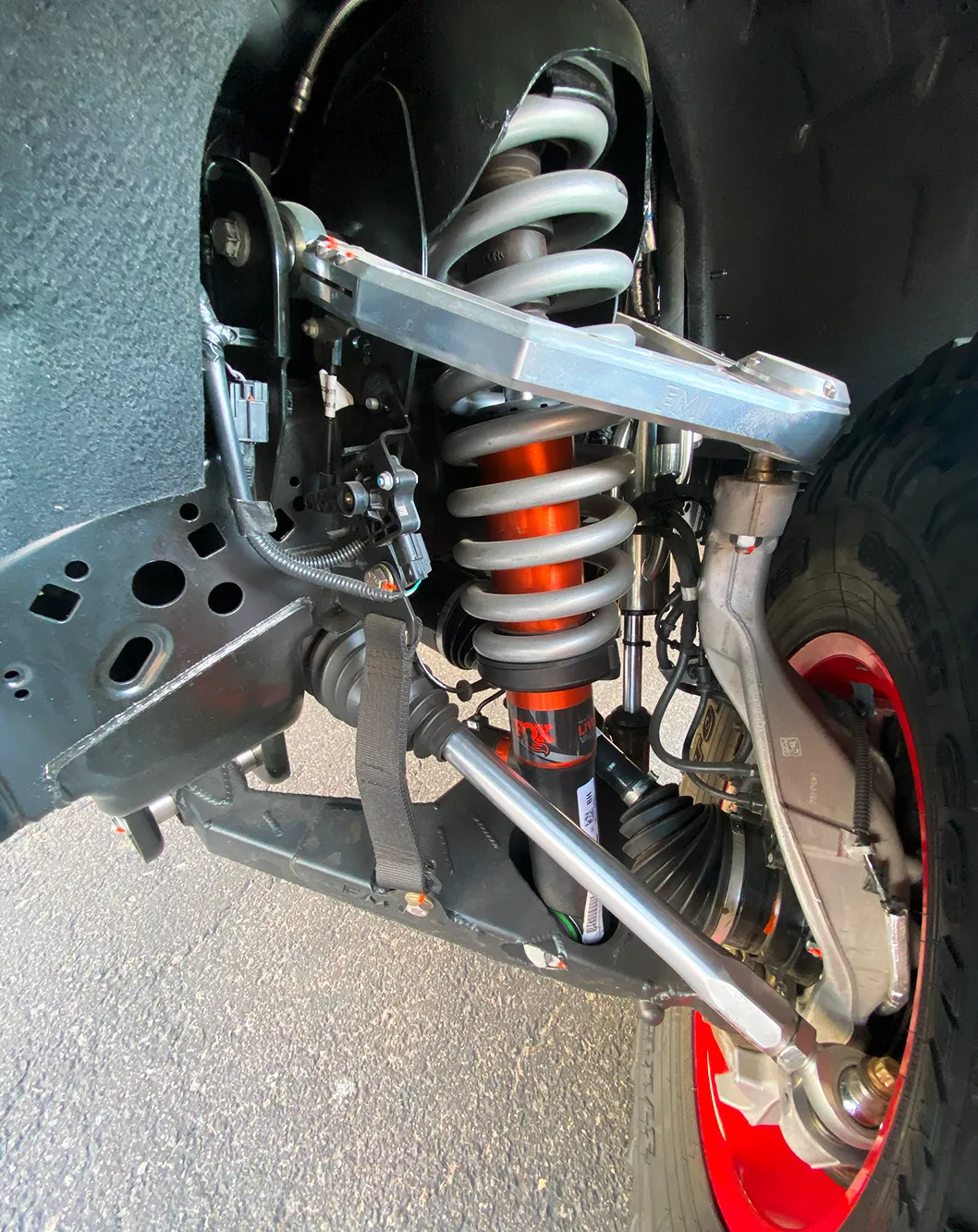

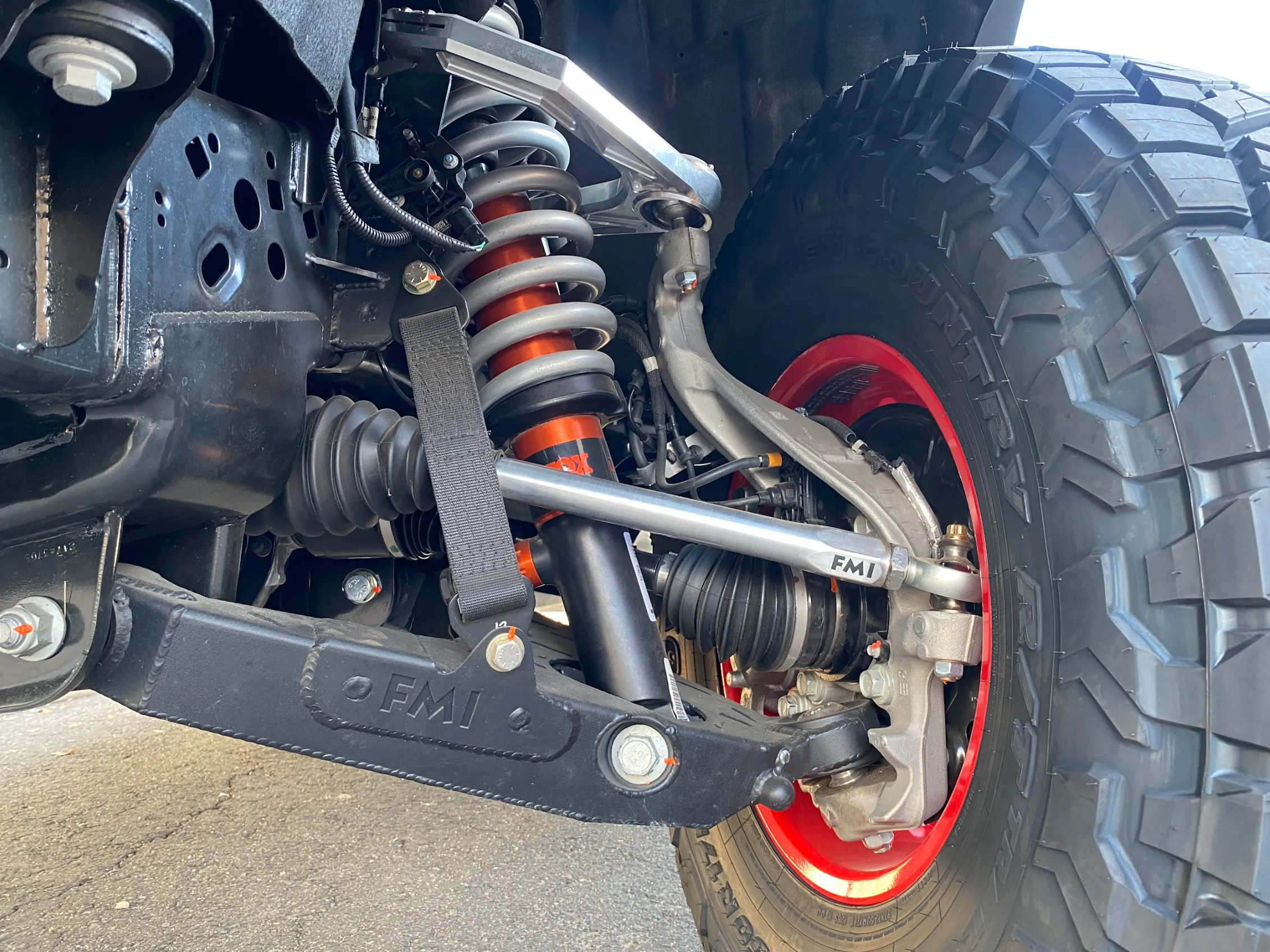

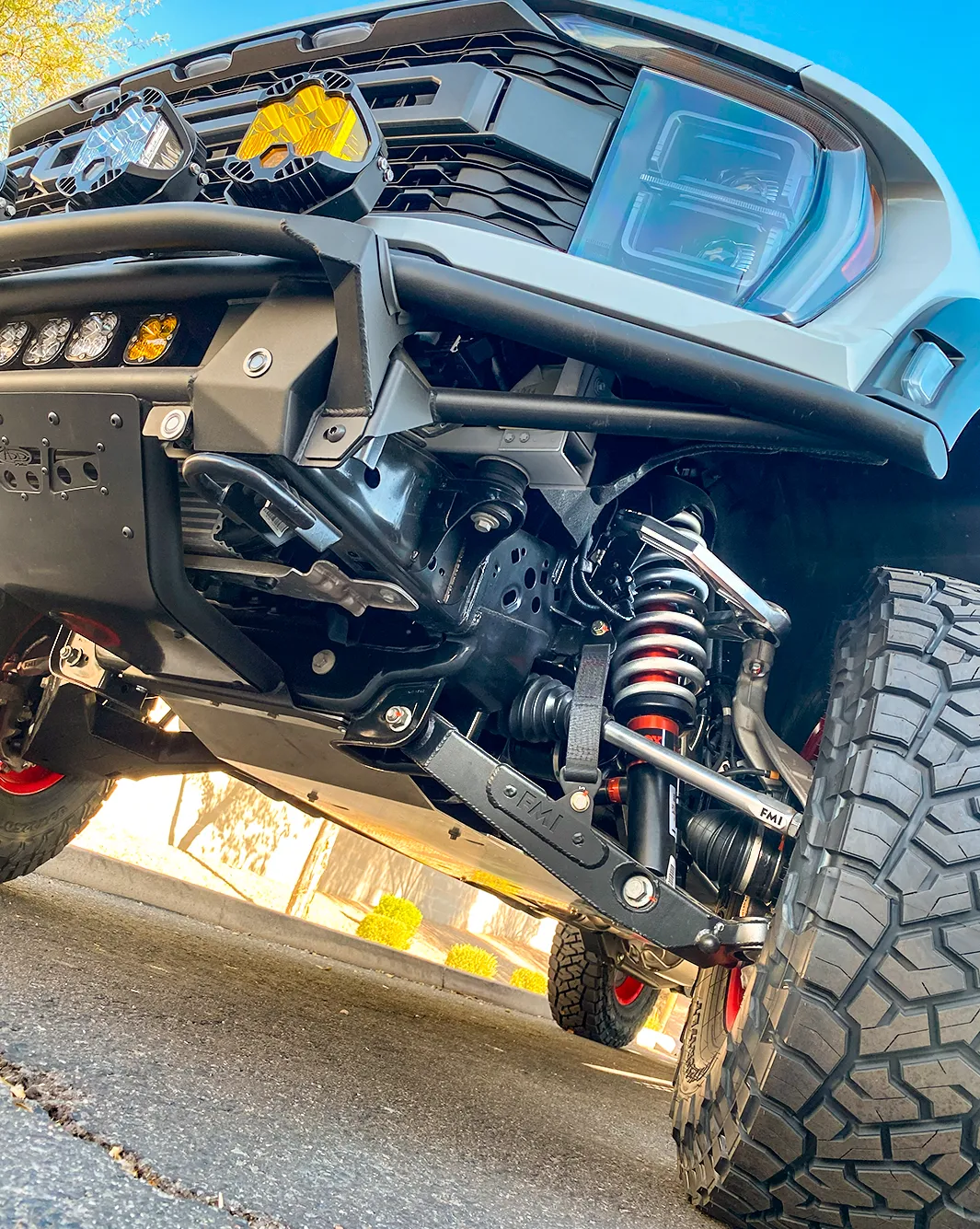

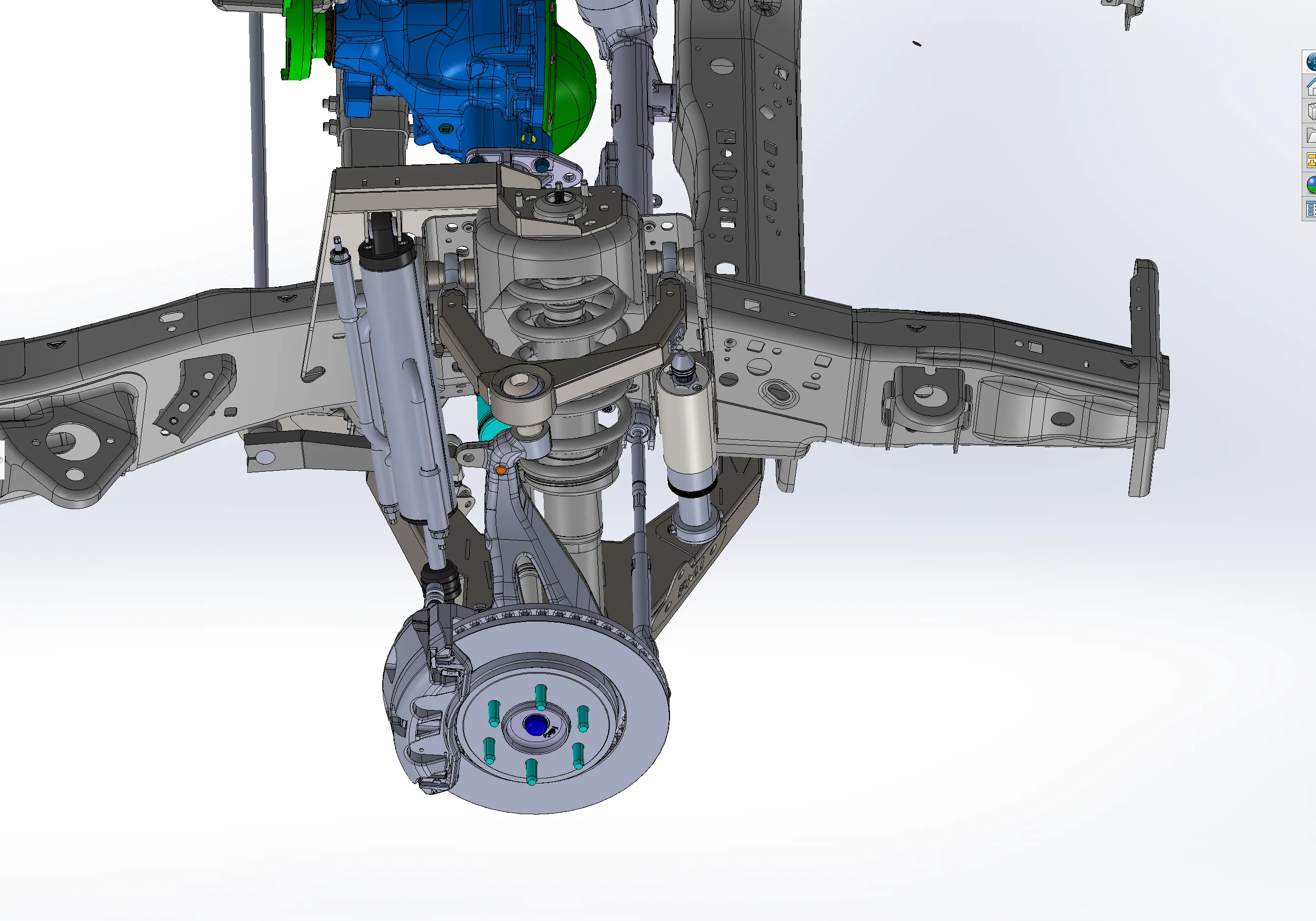

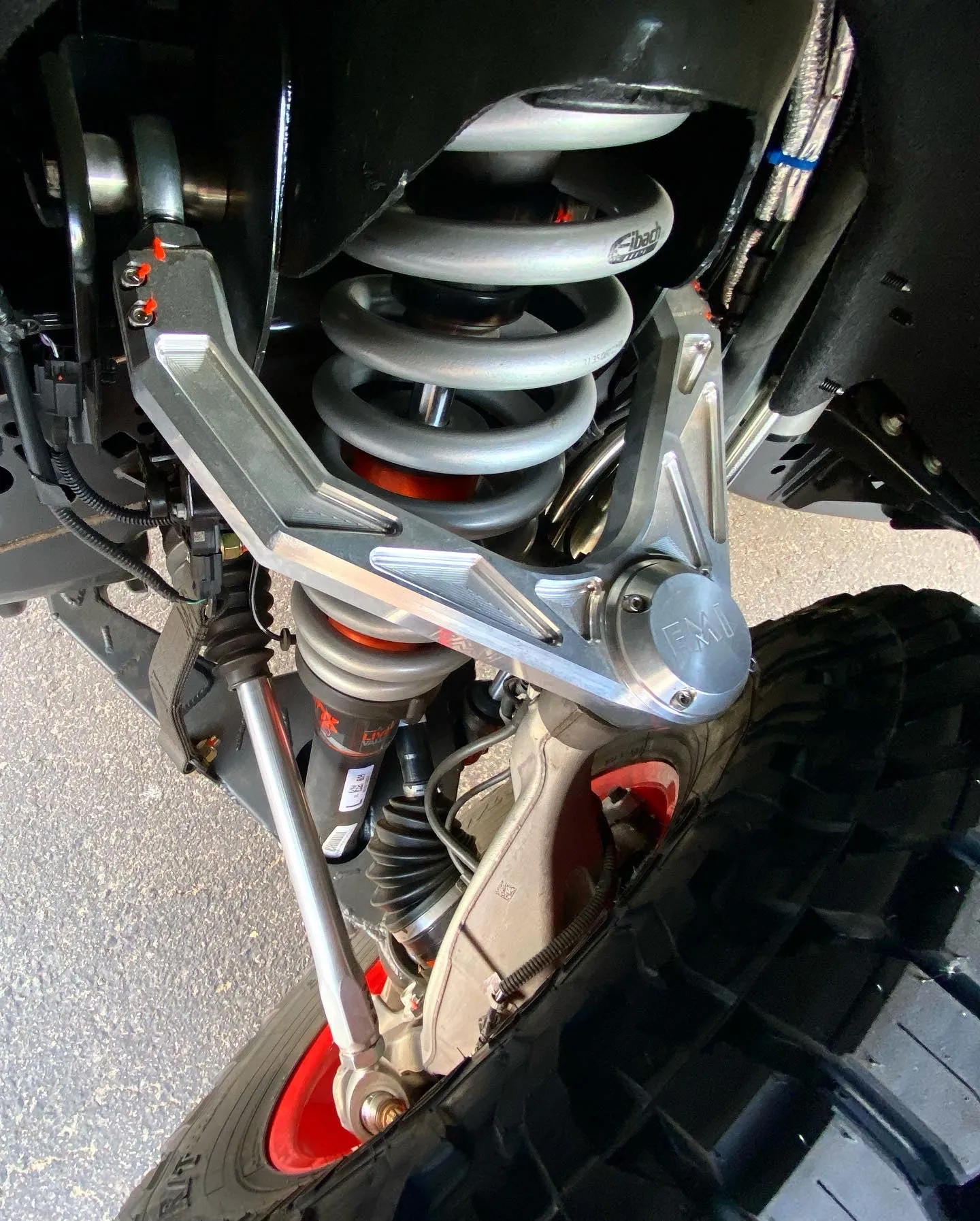

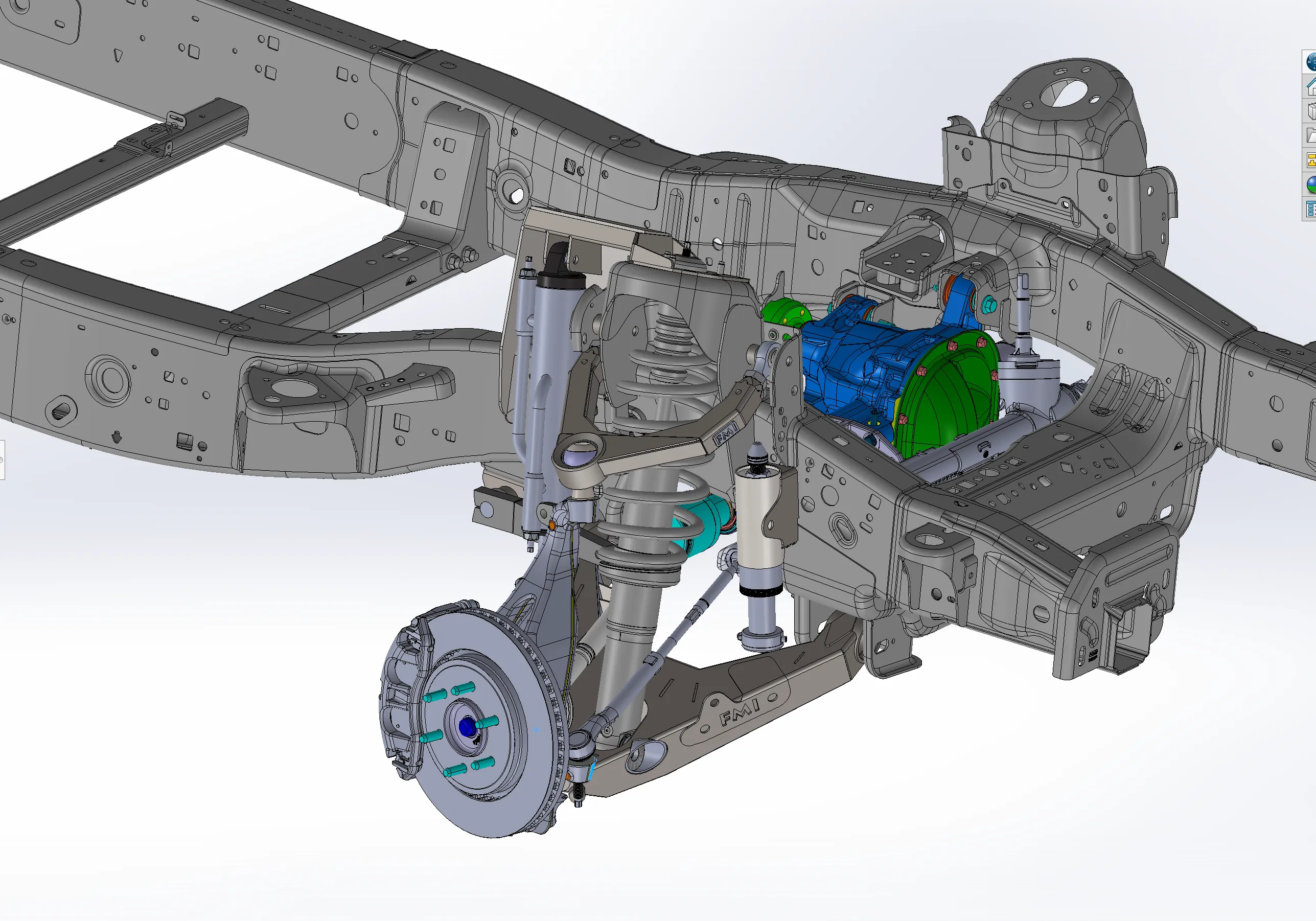

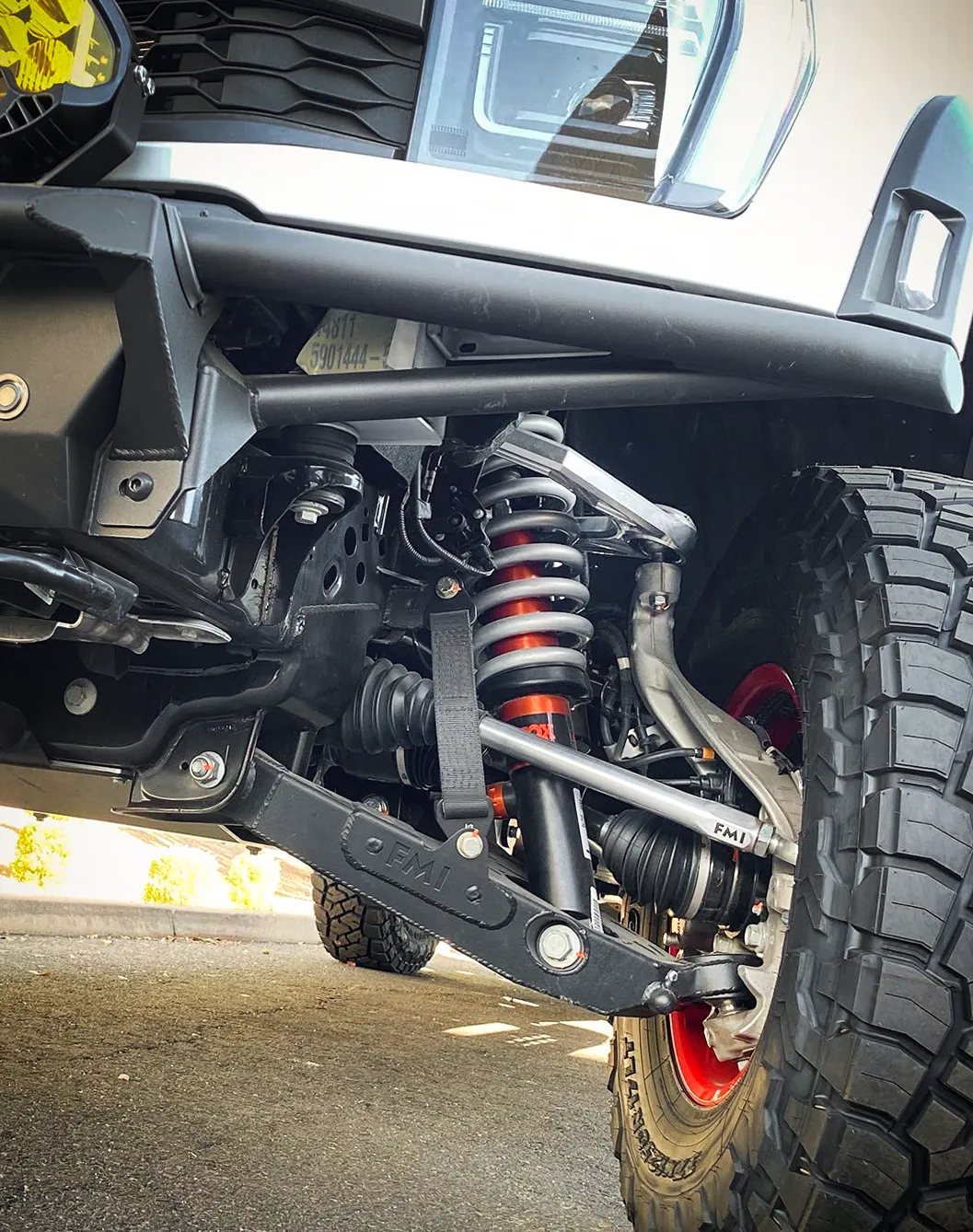

Our race proven front suspension kit has been tested and proven over and over. This kit features full 4130 Fabricated Lower and Billet Aluminum Upper Arms, and Frame Mounts. The suspension geometry has been optimized for great on and off-road driving. The kit maintains the stock front spindle to keep the costs down but that can be upgraded to our Fabricated Spindle kit later. The kit is stock Raptor width so no fiberglass required and the factory tie rod will work or you can get a billet tie rod kit upgrade if you want.

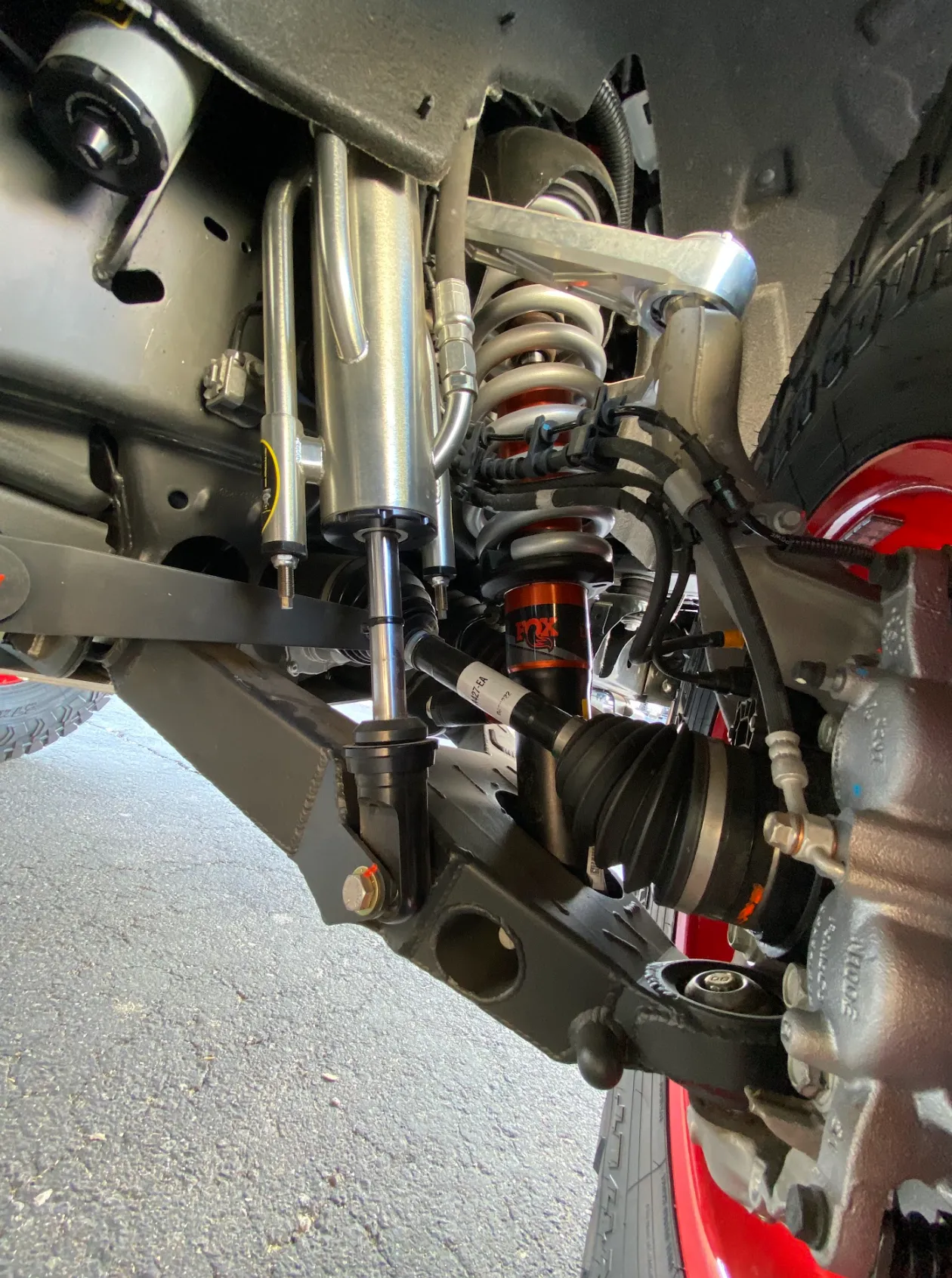

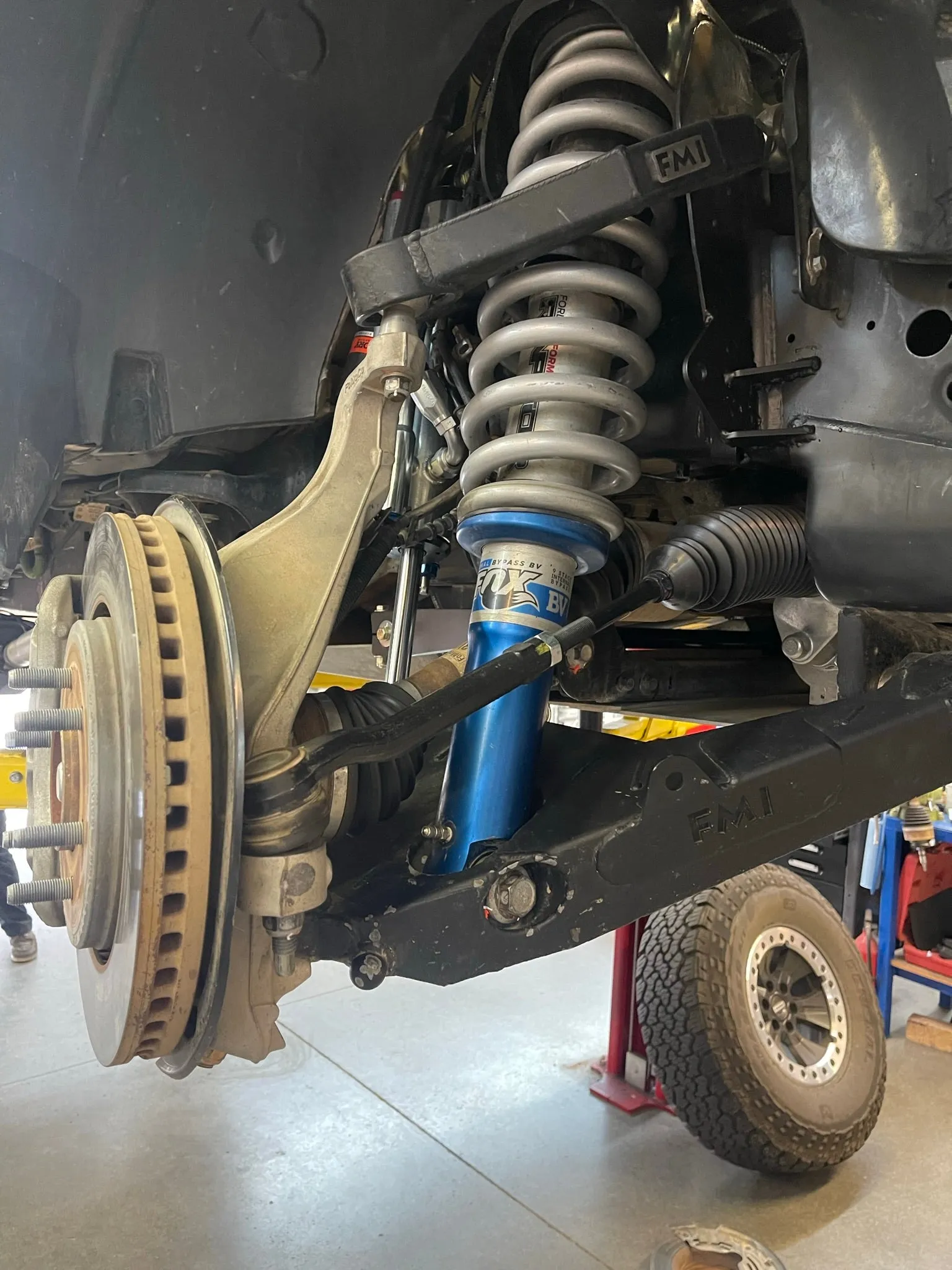

The kit will work with the stock factory front coil shock or any aftermarket shock that will fit in the stock location. That way you can maintain the stock spring tower structure. Keep the live valve stock shock to keep the budget in line or upgrade the Fox aftermarket live valve coil over shock with adjustable coil height with ease.

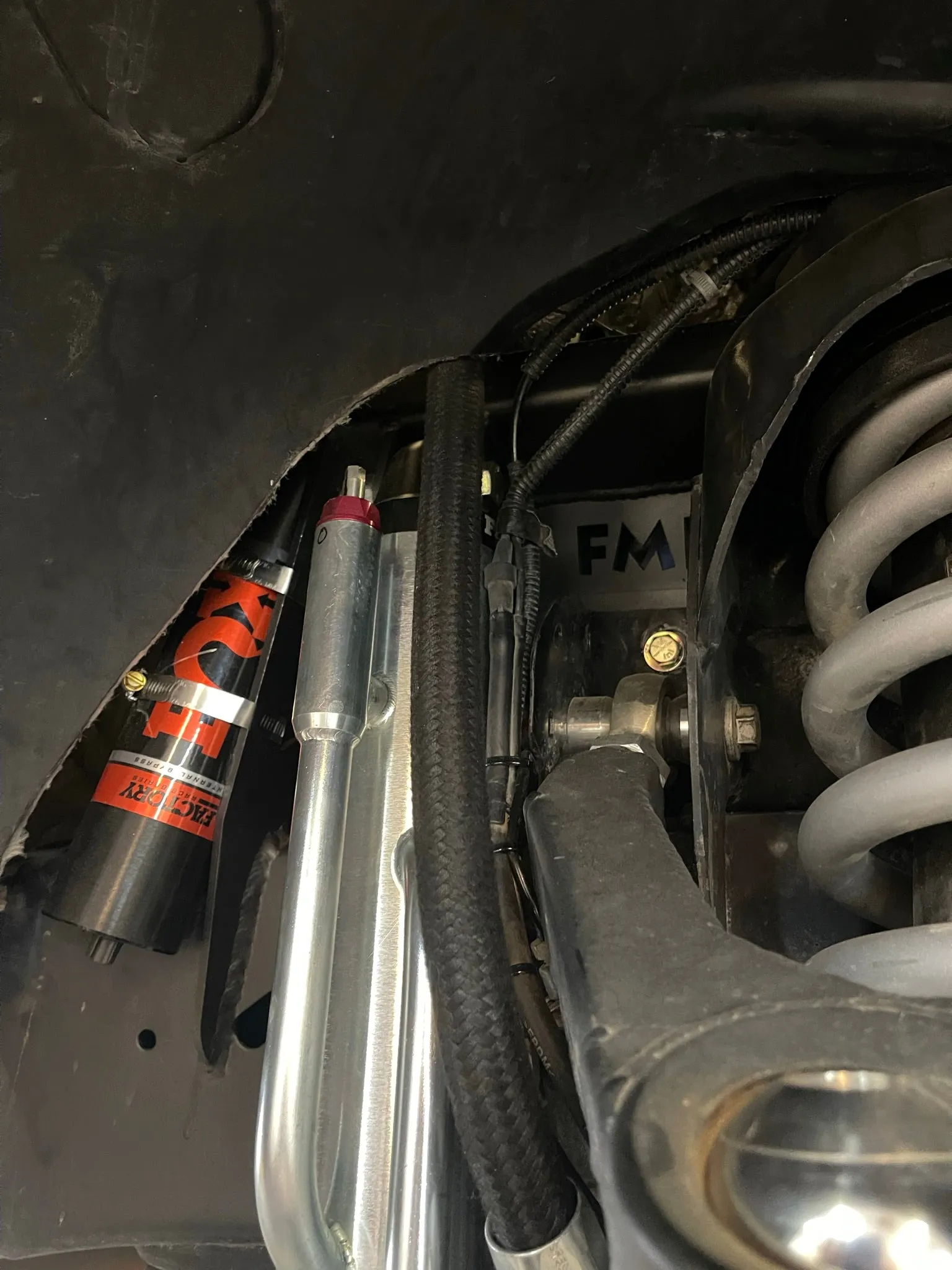

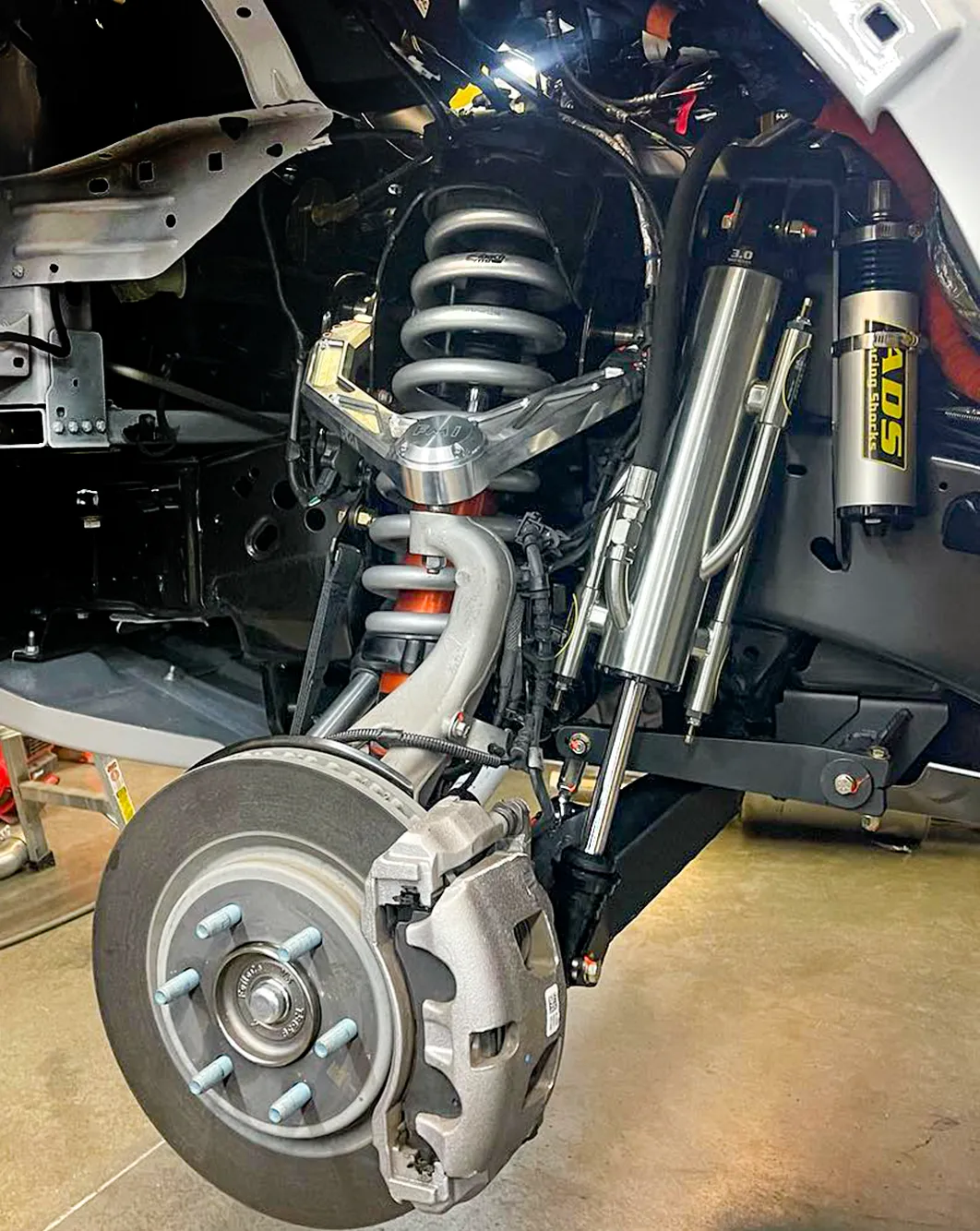

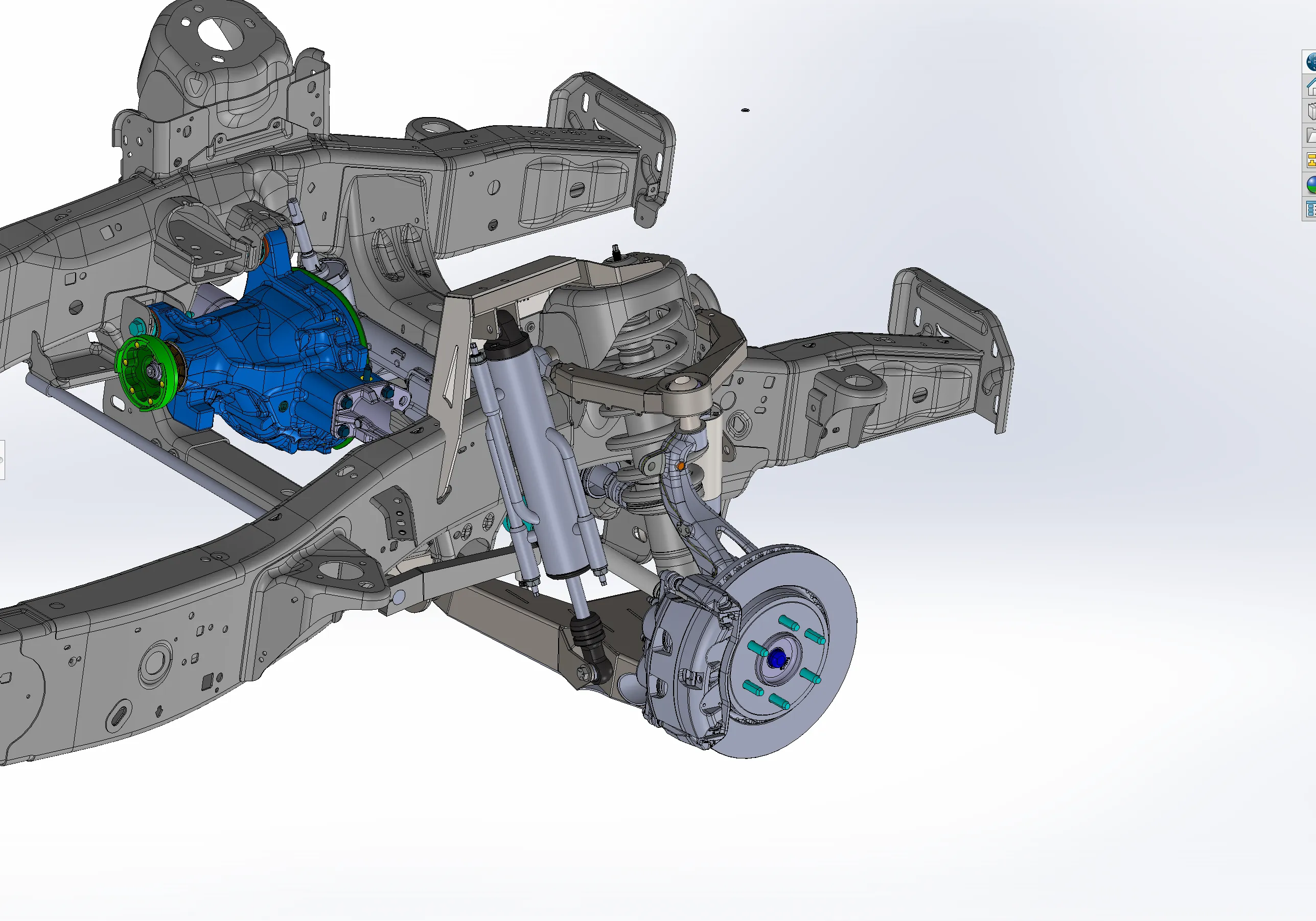

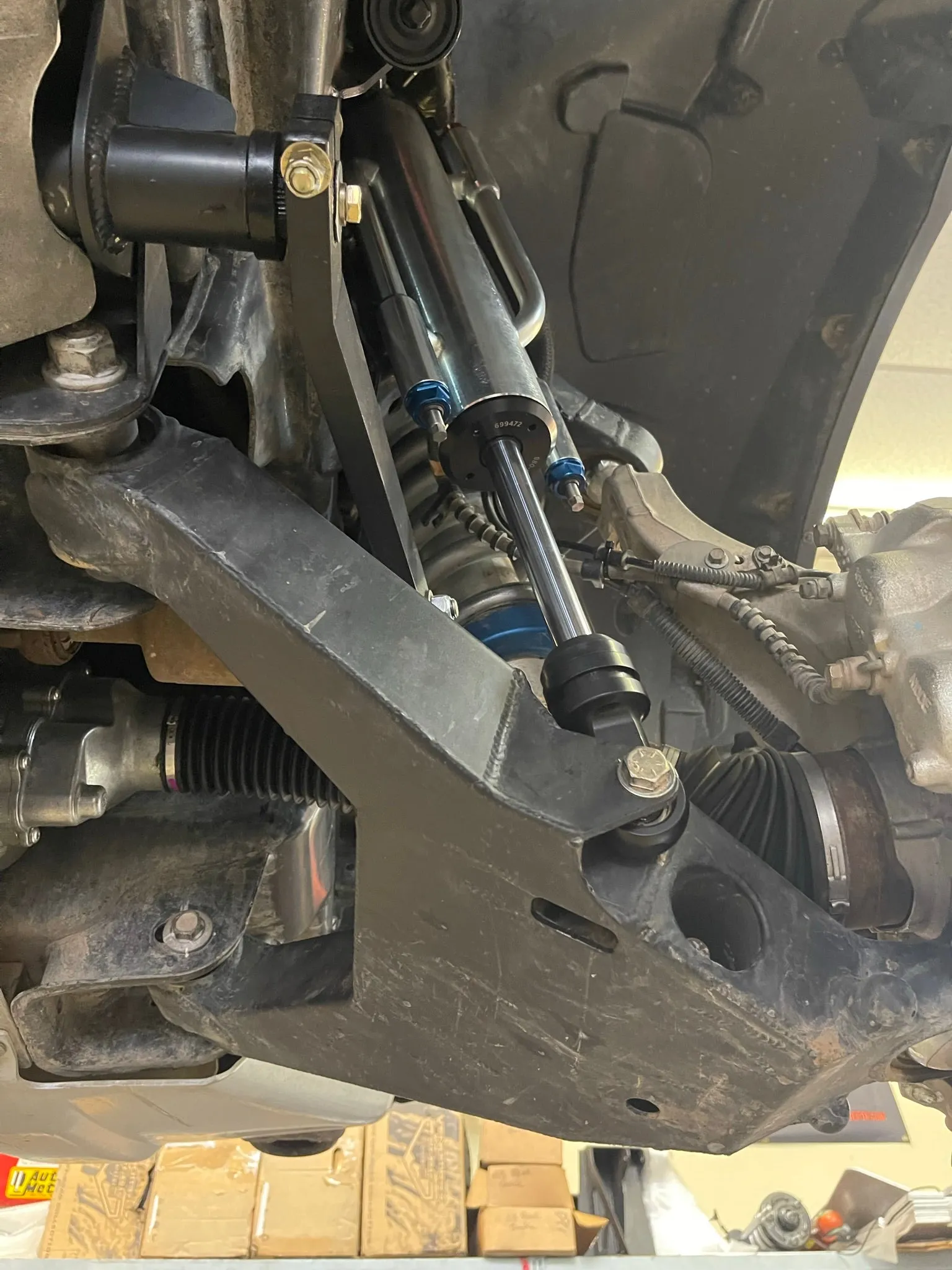

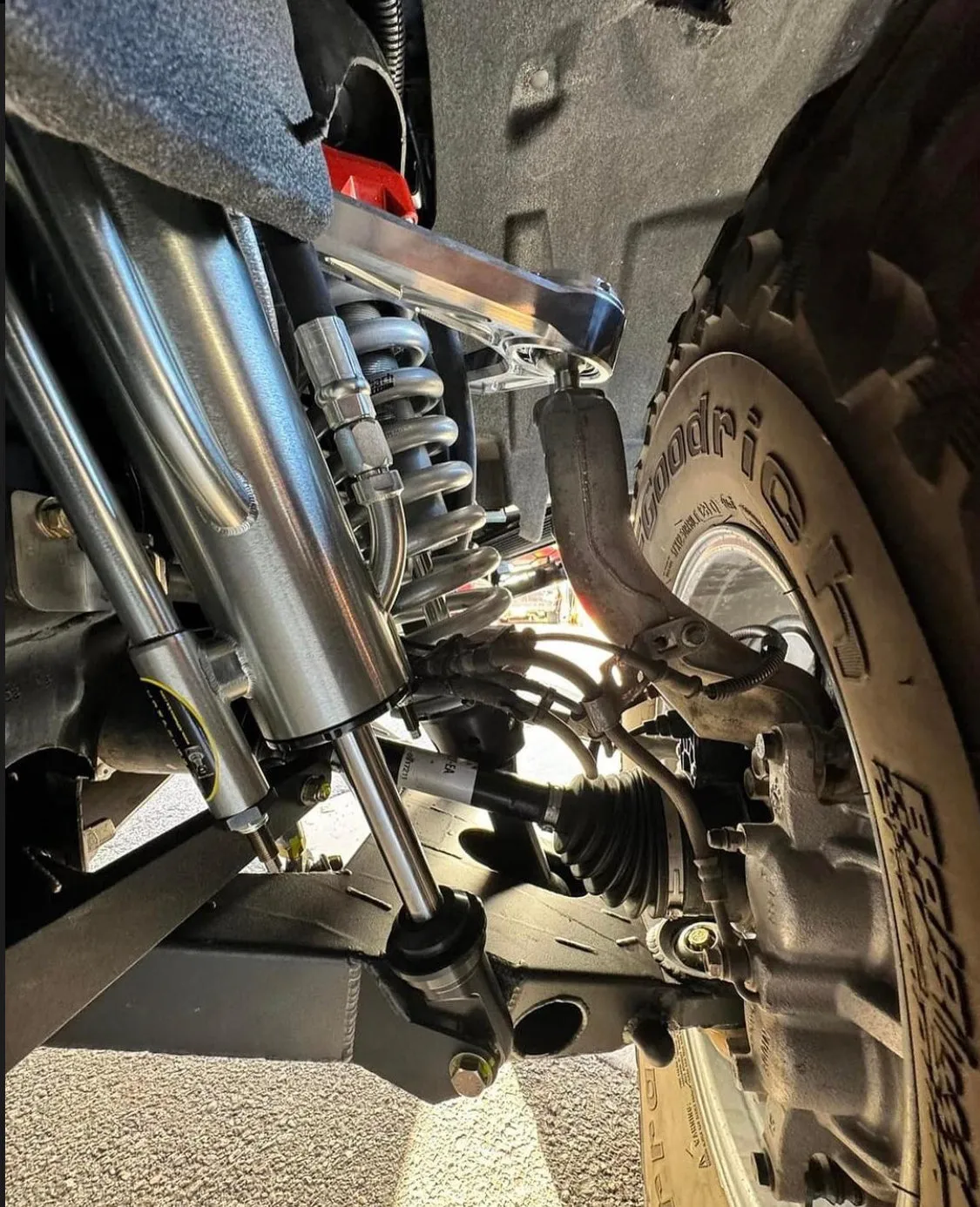

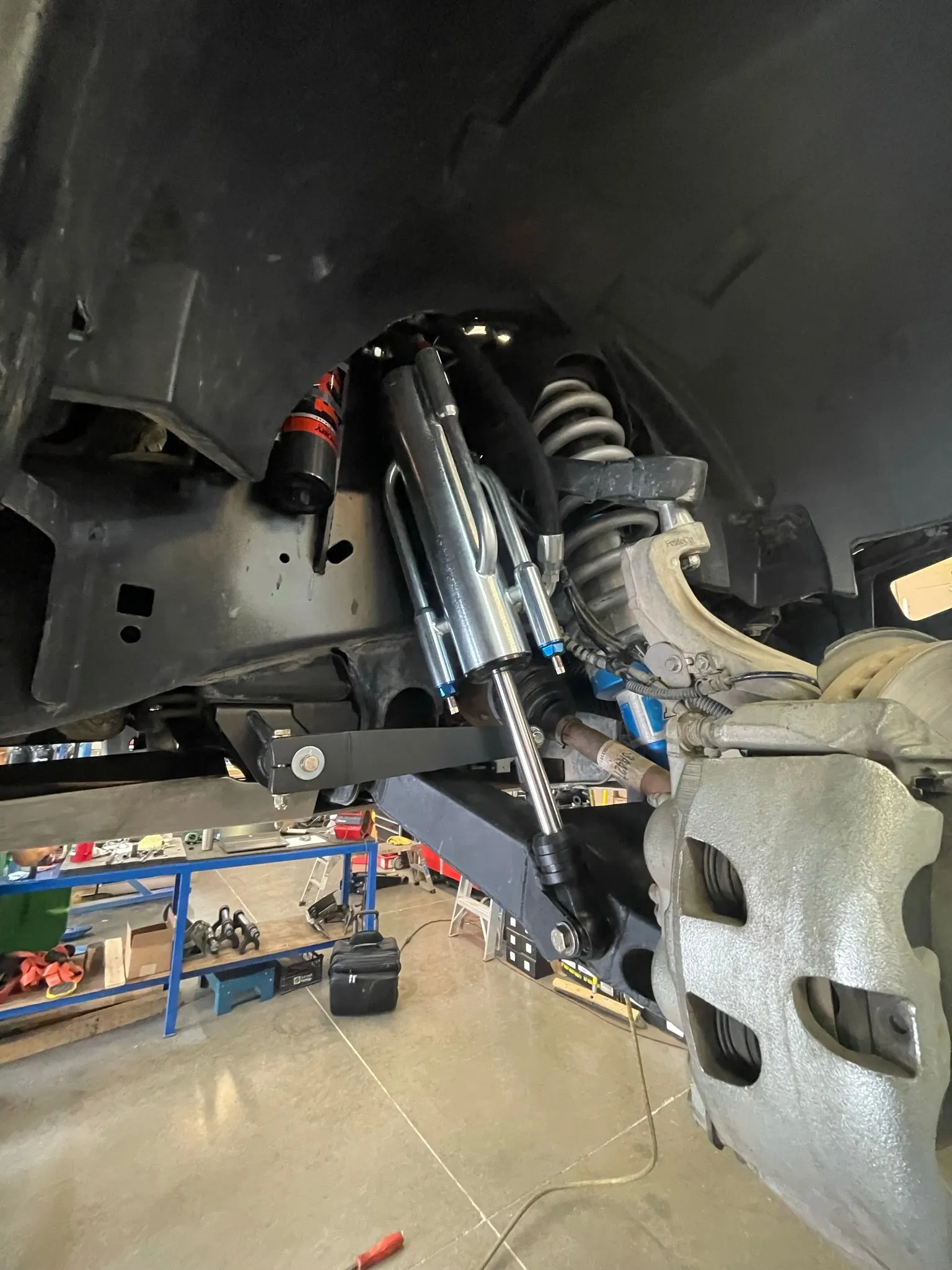

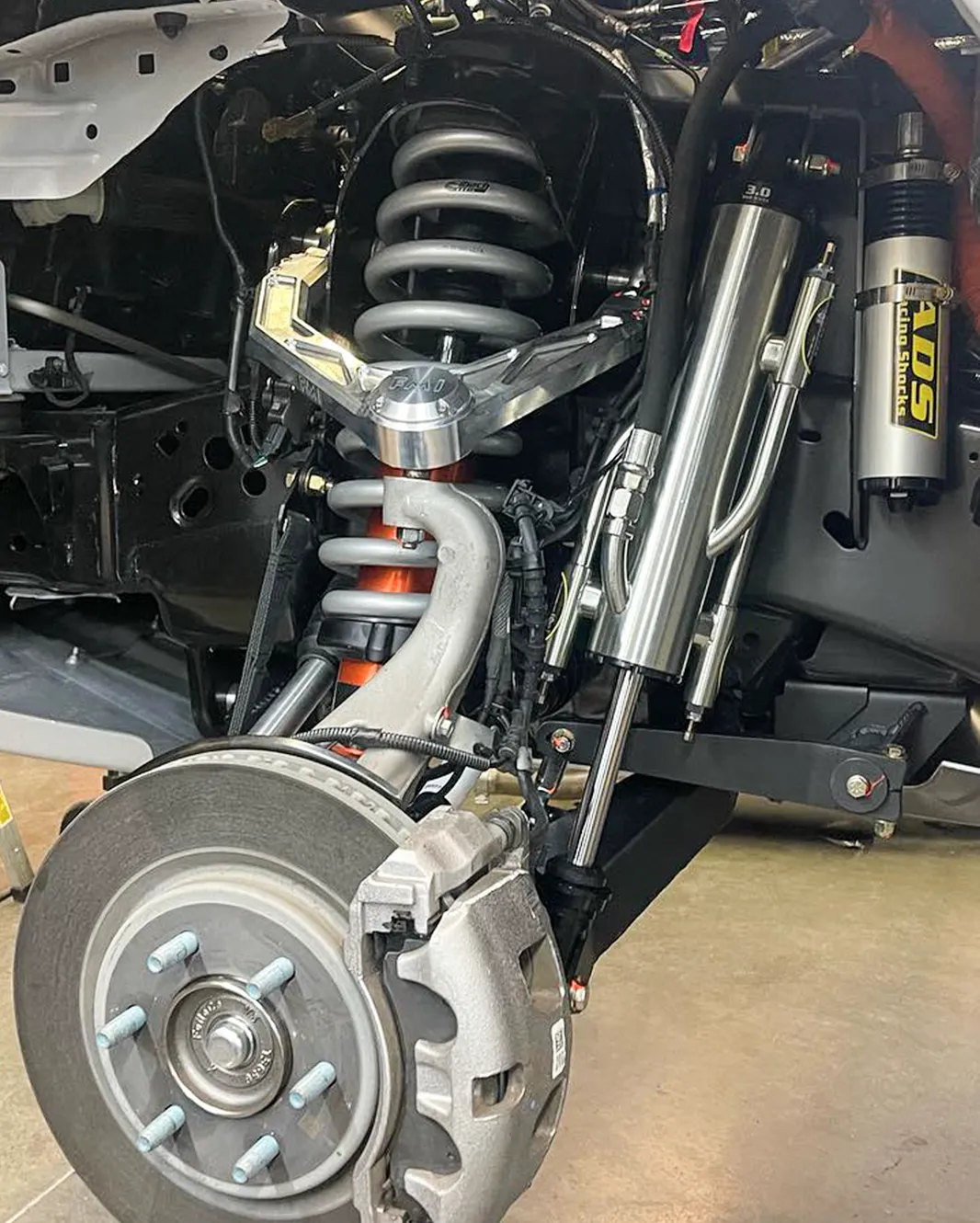

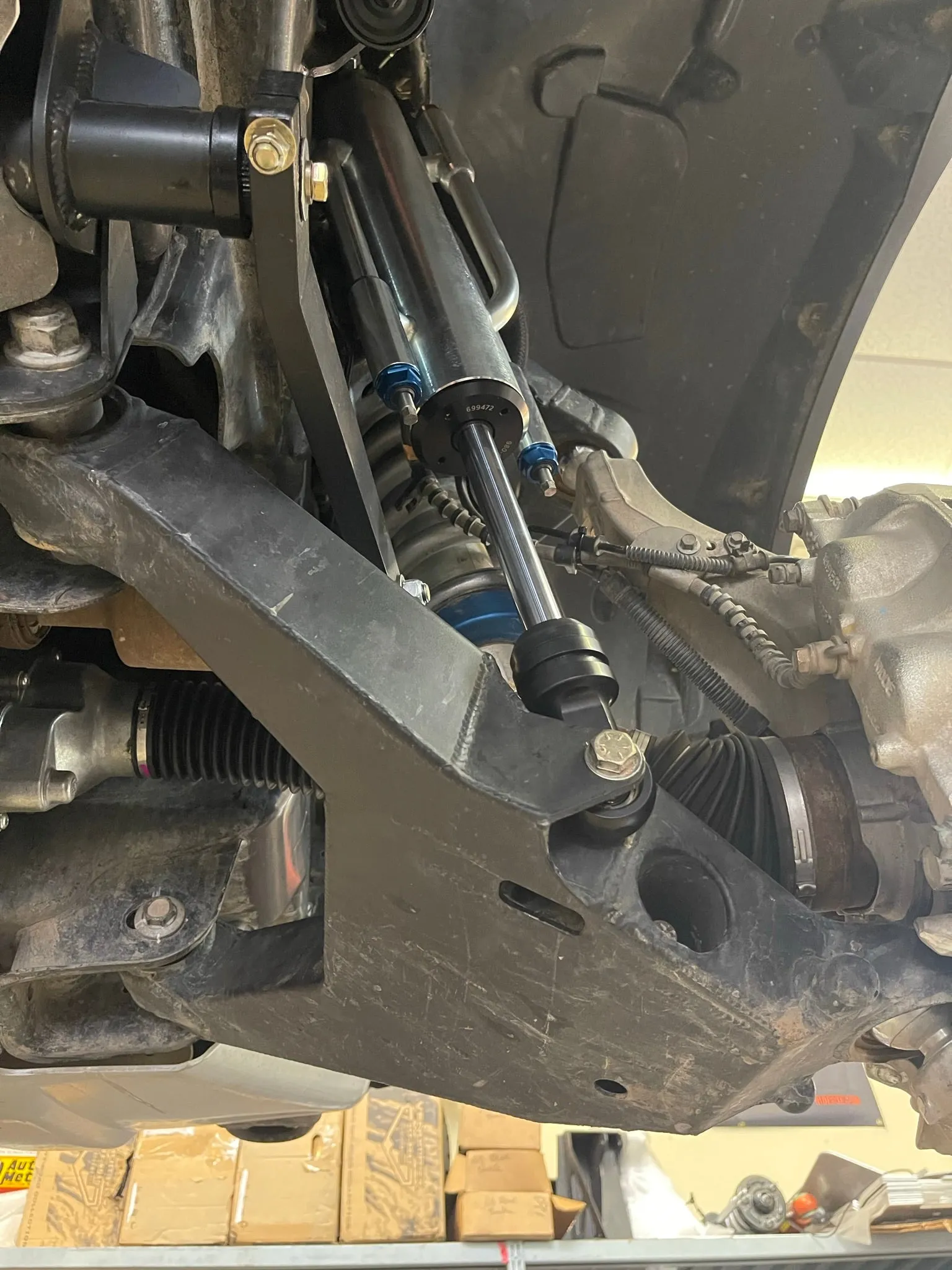

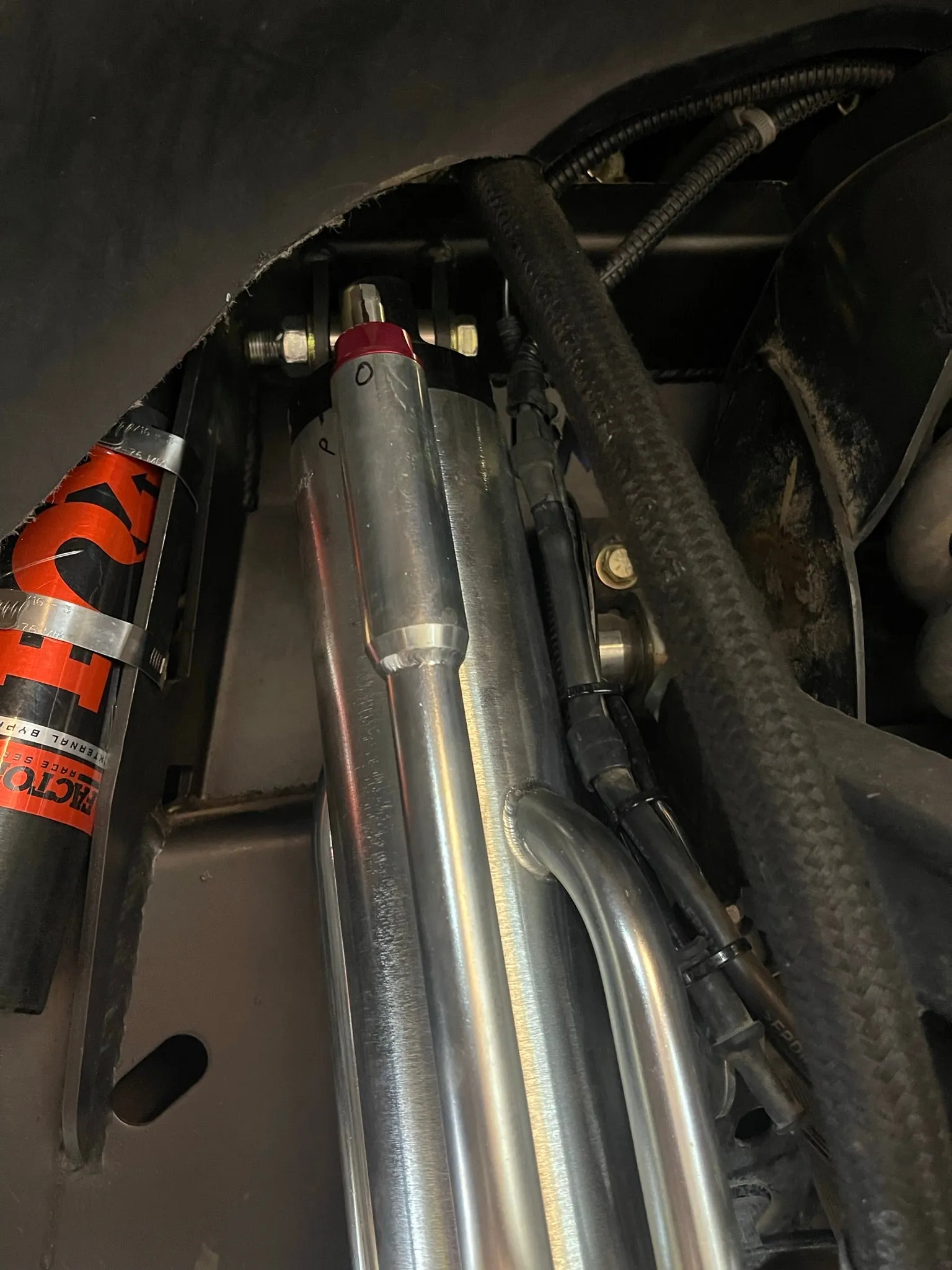

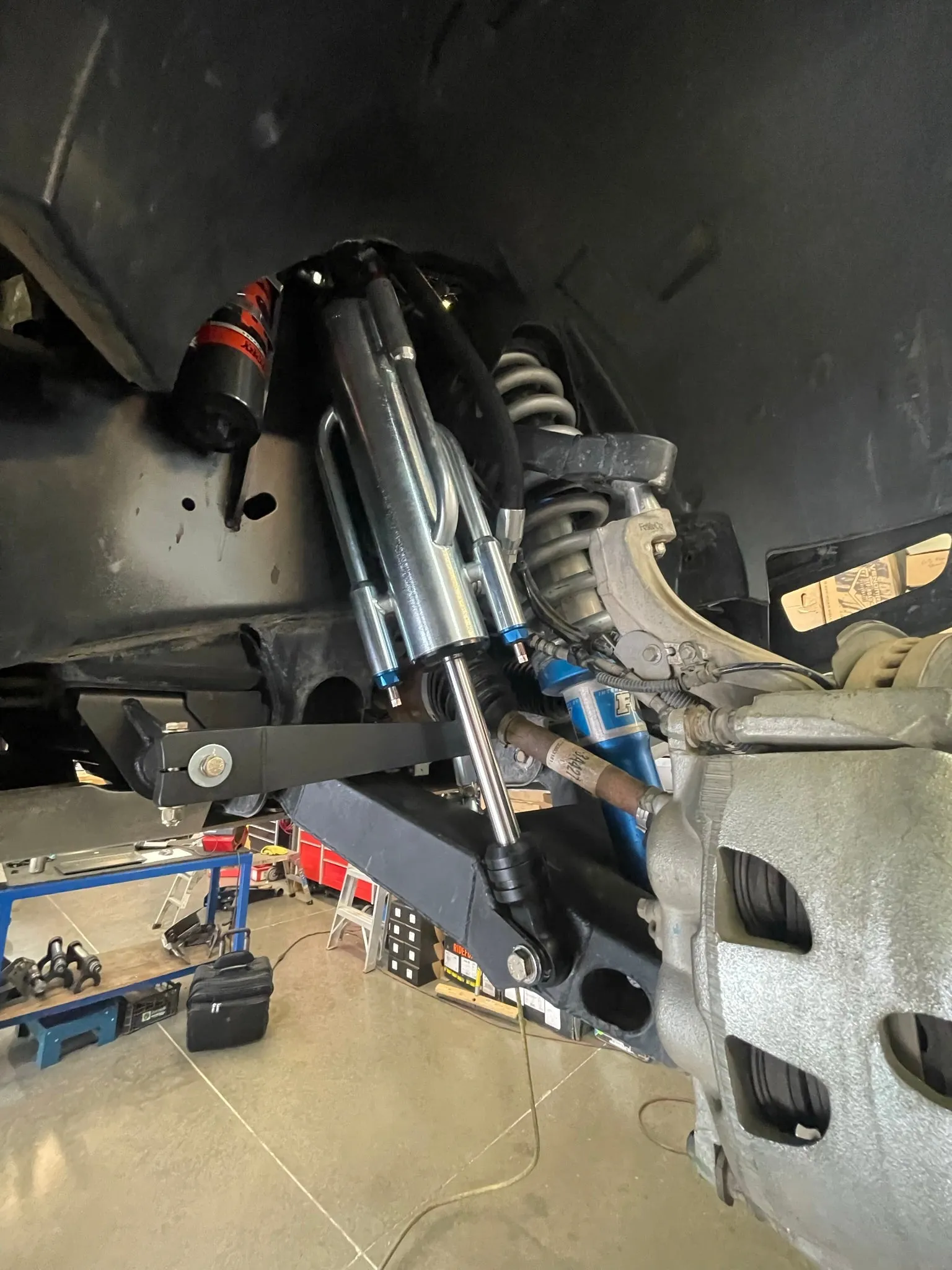

In addition the kit allows you to add a custom 3" external bypass shock that mounts to the lower arm and a top add on shock mount structure that links to the factory spring tower to further strengthen the structure. The bypass shock is a very specific layout to ensure clearance with even a factory stock Raptor wheel so the shock must be ordered with your kit to ensure correct fit. No other bypass shock will fit with this kit.
We use FK rod ends and uniballs for our kits to ensure you have the best quality long lasting parts. We don't compromise on the components so you can have the confidence you need.

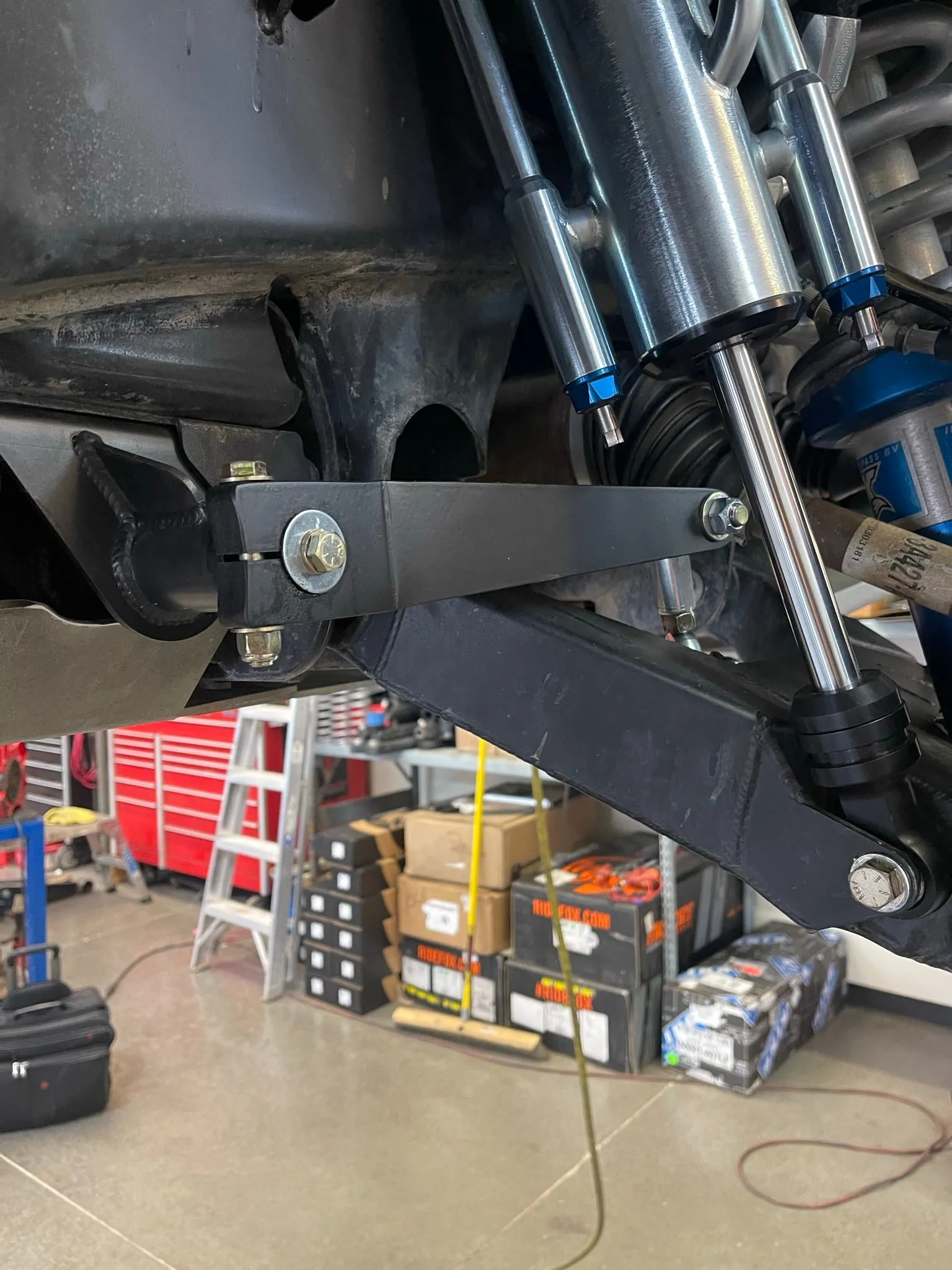

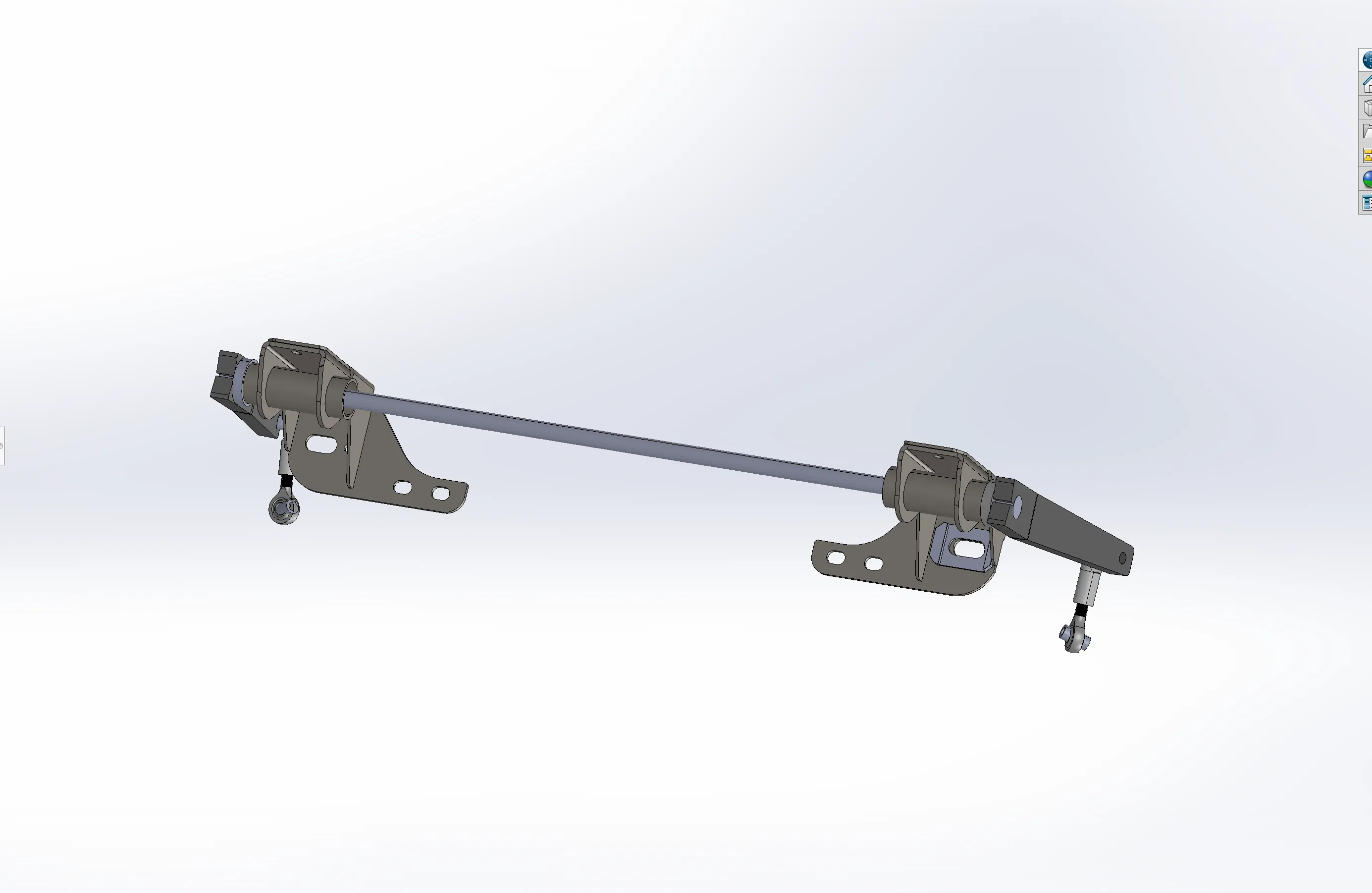

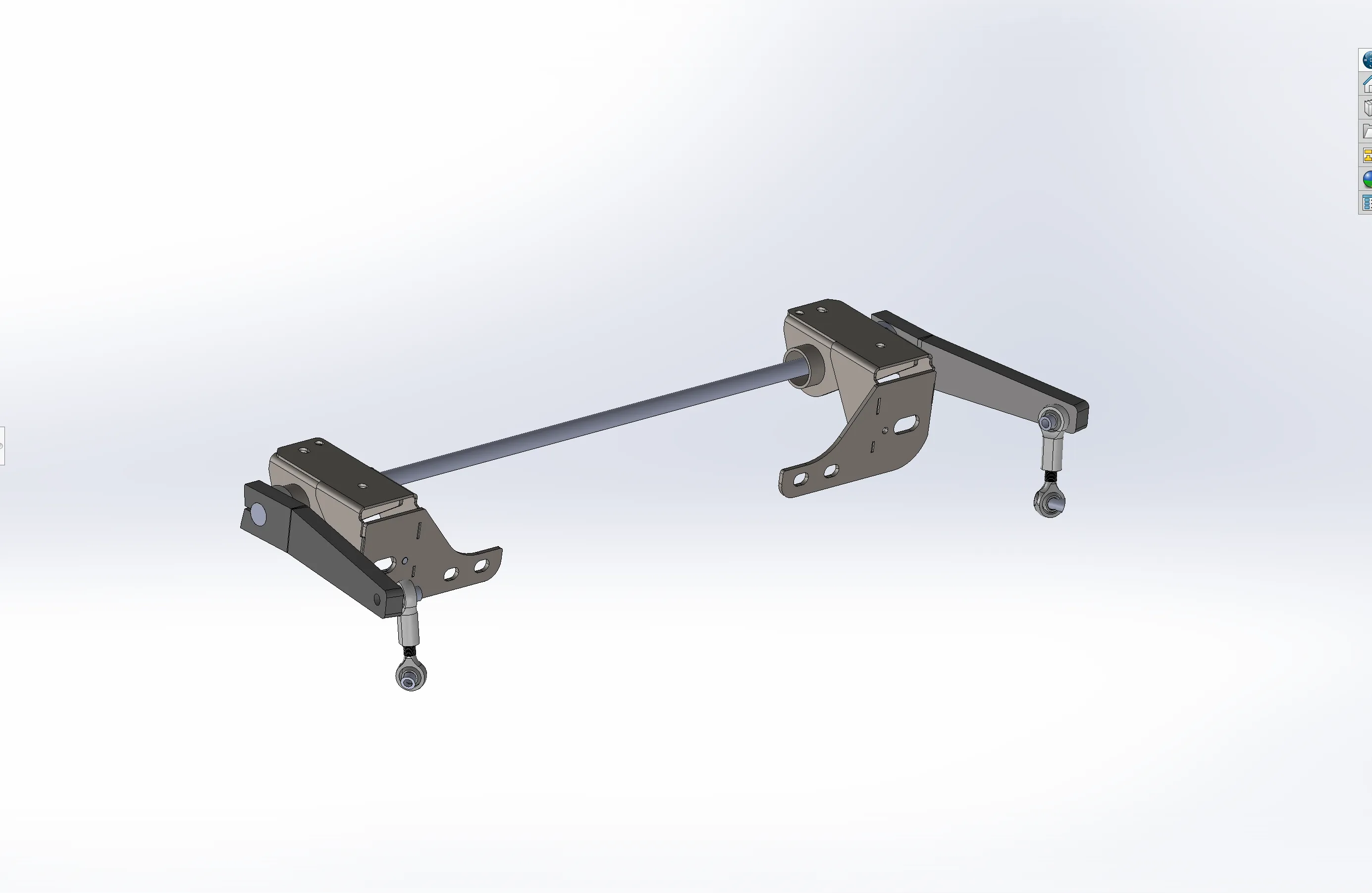

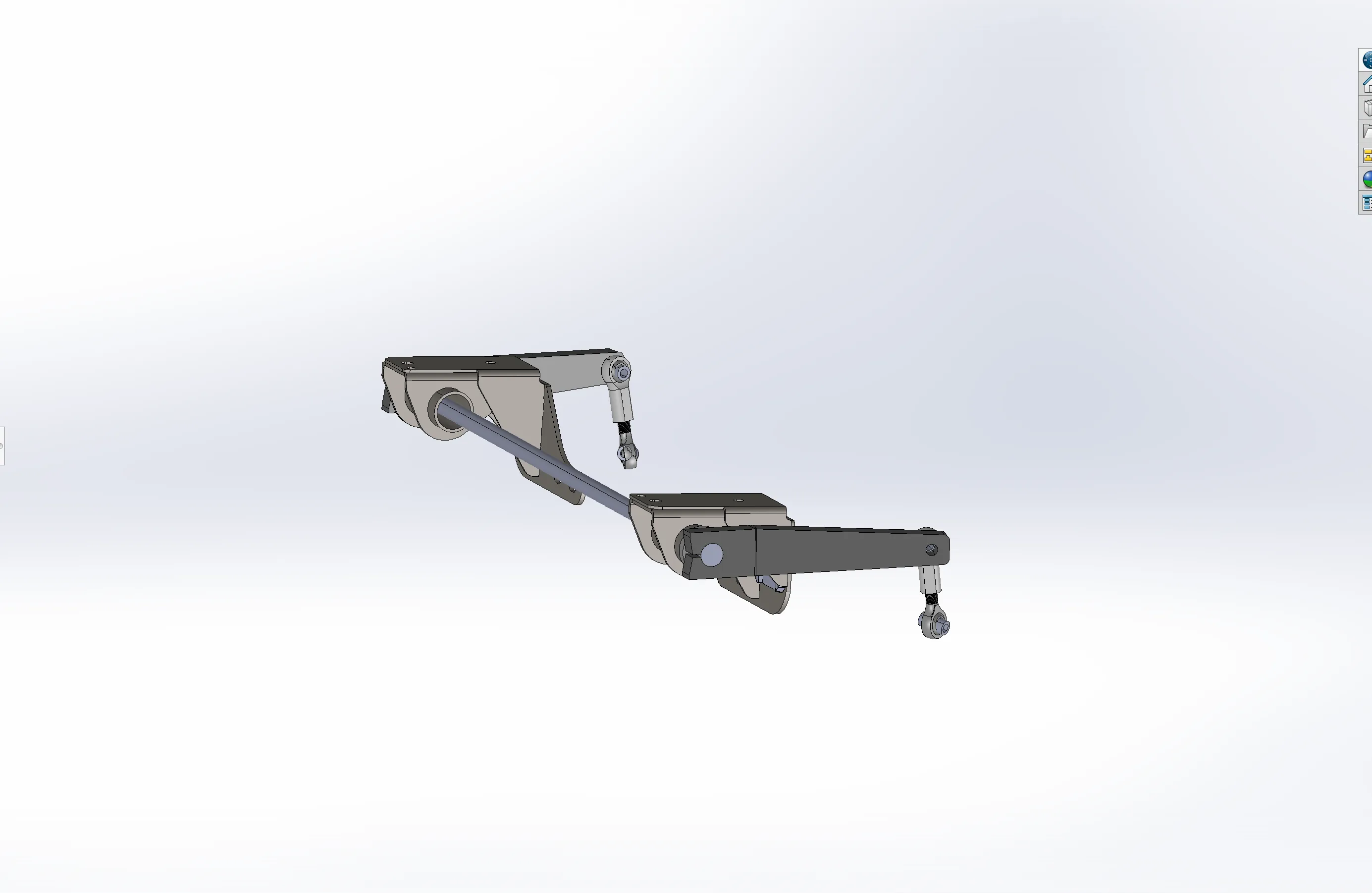

This kit will also allow you to install our add on sway bar kit for the front to keep the handling in line. The new sway bar kit uses race quality components and has been designed to fit with the addition of the extra by-pass shock. The sway bar kit also adds support to the rear lower a-arm mount that has been inherently weak in stock condition.

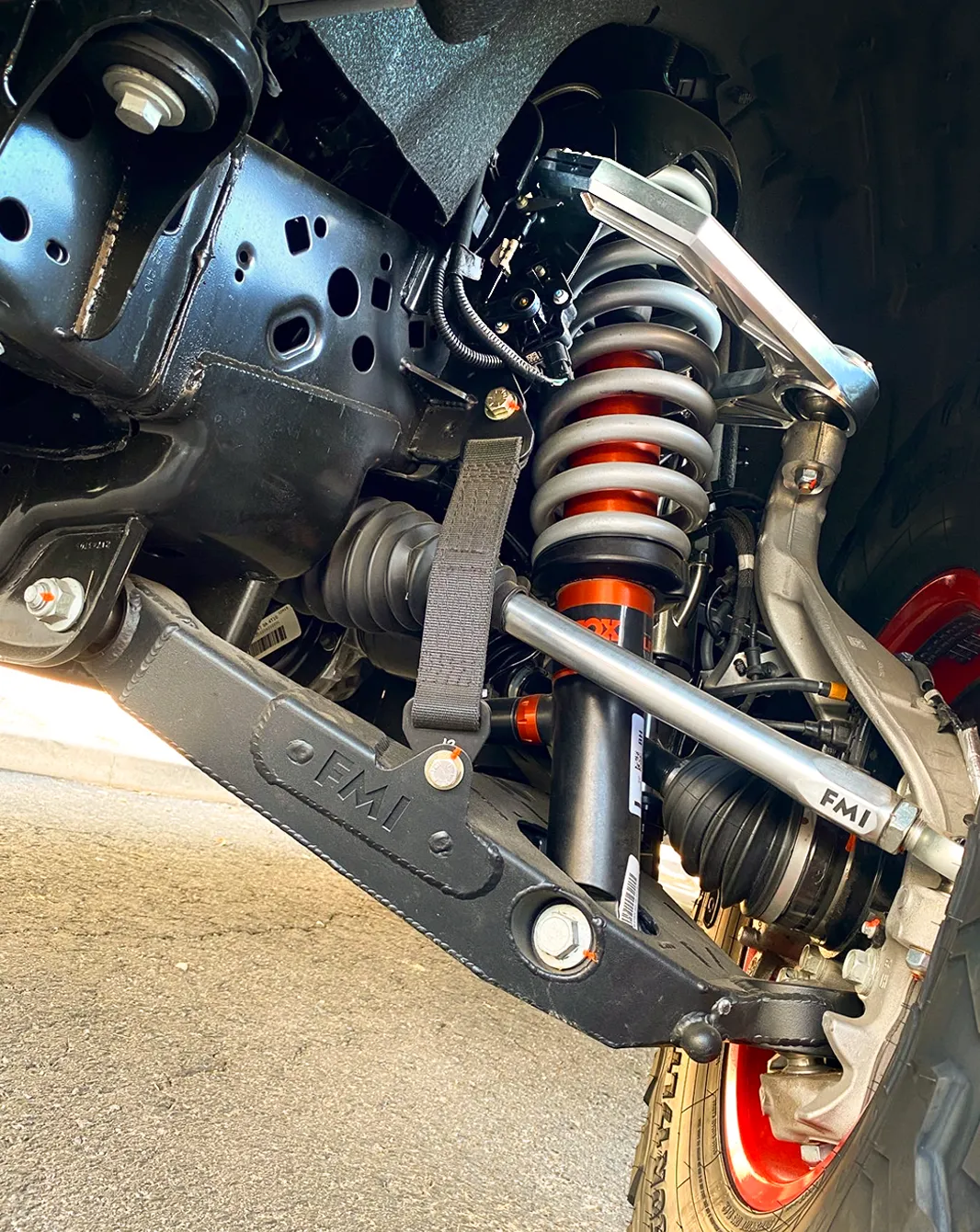

Lastly you can add a front bump stop kit to the truck. The lower arm was designed with bump pad and limit strap mount integrated in. The system utilizes a 2.5" diameter 2.5" stroke bump stop and is mounted to the frame directly for the ultimate in strength.
This kit can be installed on all versions of Raptor trucks from 2021 - 2024 model. In addition the kit can be installed on any 2015 and up F150 trucks.
Kit Includes

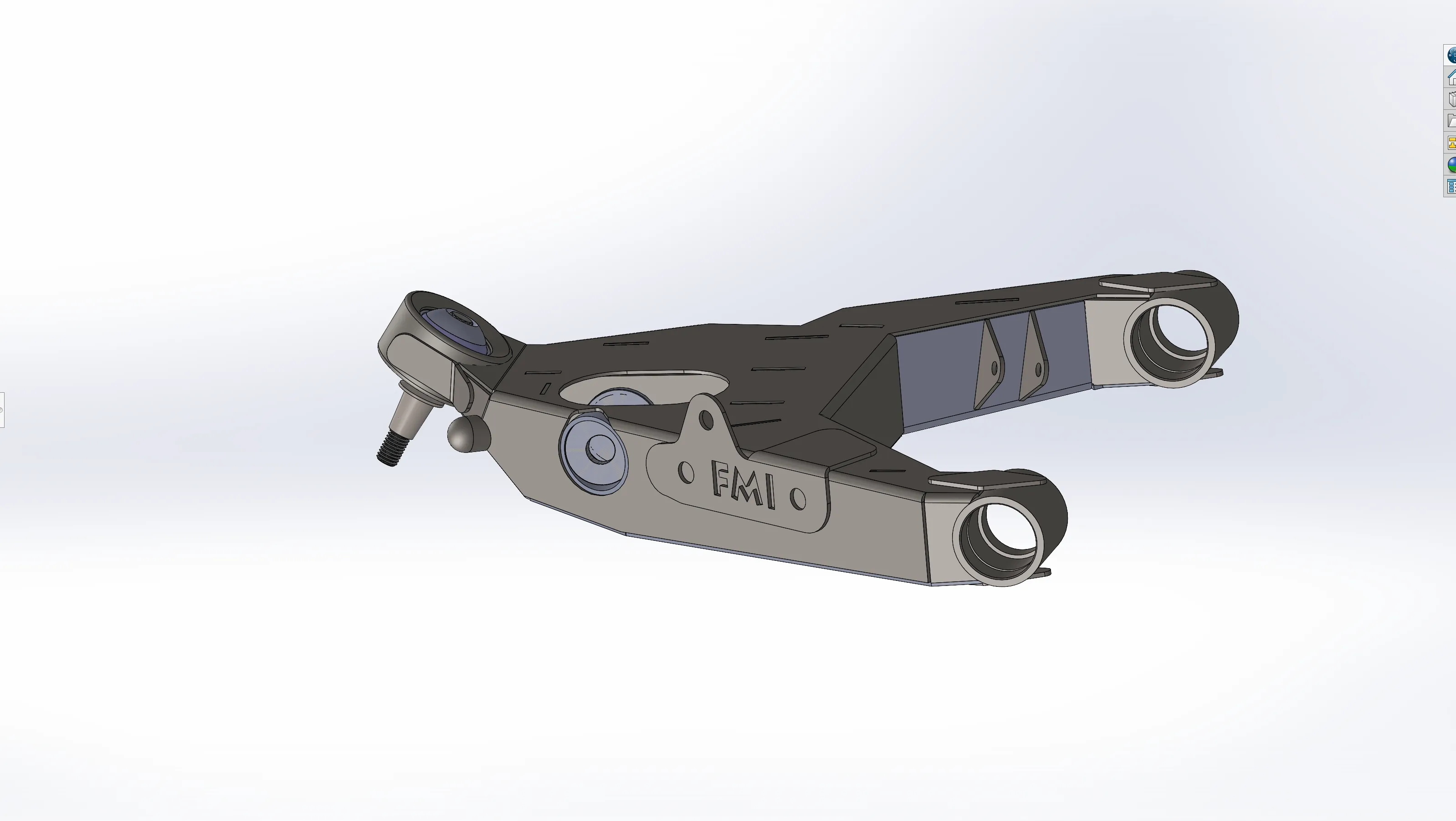

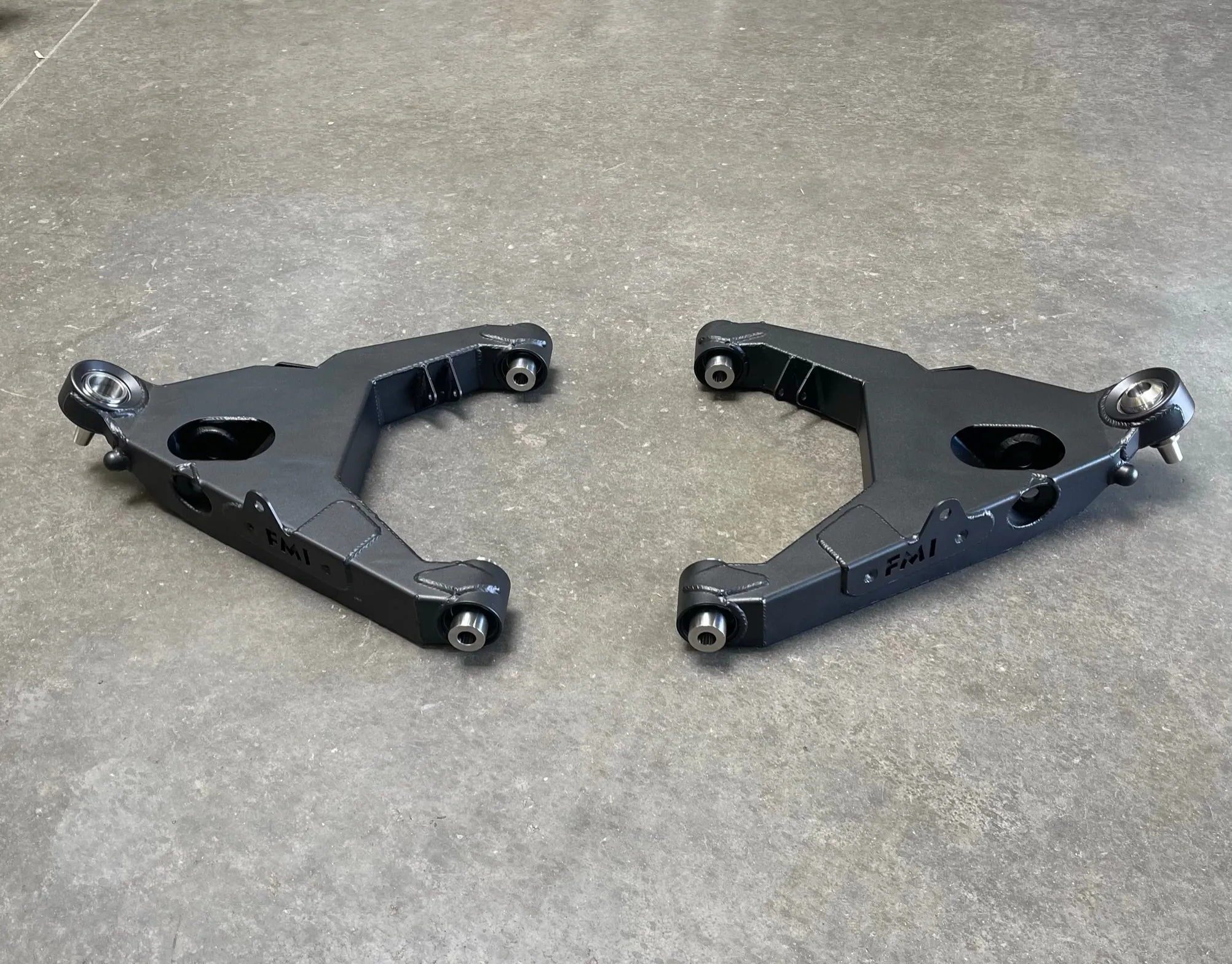

2 ea Fabricated Lower A-arms with 1.5" uniballs, snap rings, and spacers

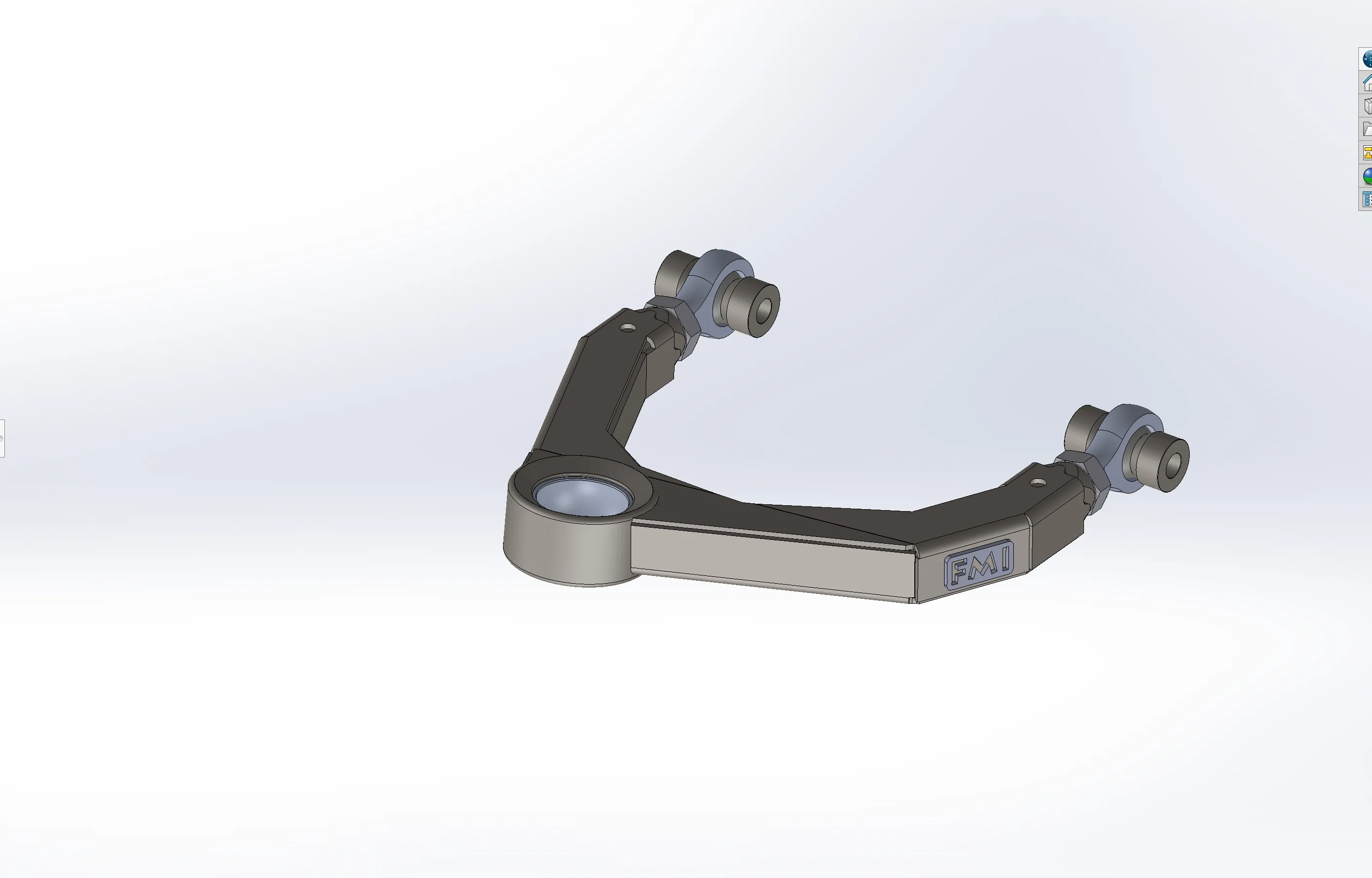

2 ea Billet Aluminum Upper A-arms with 1.25" uniballs and 7/8 rod ends and spacers
1 set of Frame mounts for upper shock tower
1 set of limit straps and mounting tabs
POSSIBLE ADD ON PARTS TO CONSIDER:
- Gen 3 Front Bump stop kit
- Gen 3 front sway bar kit
**** This kit requires cutting and welding and must be installed by a qualified fabricator. call for details.
**** Shocks are not included in pricing and you must select which shock option you want to add to the kit
